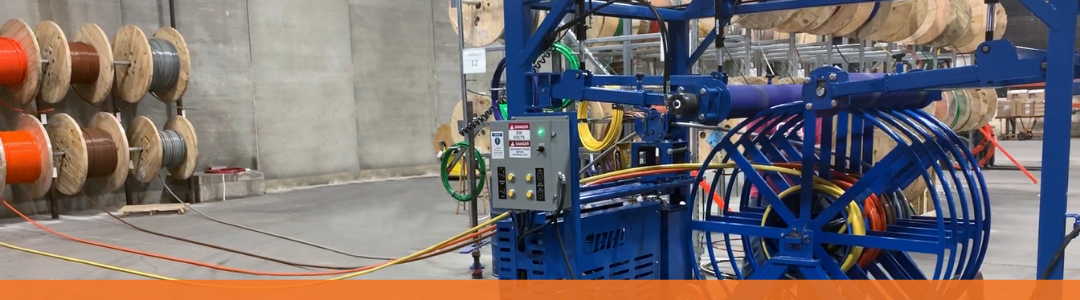

Cable Spoolers for Electrical Wholesalers: Order Fulfillment, Simplified

For electrical wholesalers, a high-performance cable spooler provides a business opportunity: You can create the job-ready spools your clients need, and with the right equipment, you can provide that service quickly and accurately (and with your current staff).

By automating the winding process, a dedicated cable spooling machine reduces the physical labor required for wire management and significantly increases the speed of daily order fulfillment. It’s effectively a force multiplier for your warehouse staff.

But if a spooling machine lacks the durability to handle continuous multi-shift use or the precision to prevent material waste, it becomes a liability. In this guide, we’ll review the engineering features that define a professional-grade cable spooling system.

First, we’ll provide a quick overview of two BHS solutions: The Spool Winding Trolley LITE (SWT-LITE) and the Spool Winding Trolley PLUS (SWT-PLUS). For more details on either product — or to discuss custom material handling solutions for your operation — send us a message.

Cable Spooling Products from BHS

Spool Winding Trolley LITE

The SWT-LITE is a dependable, heavy-duty respooling machine designed for operations that require professional performance. Its robust steel construction and overhead rim drive technology makes it an excellent choice for wholesalers looking to move away from manual jack-stand respooling and toward a more ergonomic workflow.
The LITE model features a manually operated unit with a wired pendant and a digital cable counter to ensure accurate counts for every order. Other features:

• Overhead Rim Drive: Rotates take-up reels while a urethane-coated encoder wheel accurately counts linear footage, eliminating waste.
• Shaftless Design: Enables respooling on a wide variety of reel configurations without removing them from stands.
• Control Slide: Gives the operator full control over coiling for the highest possible yield per compartment reel.
• Hydraulic-Actuated Roller Arms: Allows for powered positioning to accommodate a wide range of reel diameters.
• Dual Speed Settings: Low-speed for precise control when beginning and finishing; high-speed to minimize total spooling time.
• Universal Compatibility: Maximum reel width of 48" and ideal for use with any BHS Parallel Reel Payout (PRP) unit.

Spool Winding Trolley PLUS

The SWT-PLUS is engineered for maximum efficiency in high-volume distribution centers. As a stand-alone payout engine, it ships fully wired with its own software package and an integrated high-definition HMI touchscreen for pre-programming jobs.

This model includes an Autorun cycle to automate the payout process, drastically reducing labor in cut-to-length wire distribution. For operator mobility, the SWT-PLUS comes standard with a wireless pendant, a wireless foot pedal, and integrated LED lighting for clear visibility during every shift.

• Touchscreen Operator Interface: Allows users to pre-program jobs and set different units of measurement via integrated HMI software.
• Automation Features: Includes an auto-run cycle to automate orders on the payout floor for just-in-time fulfillment.
• Advanced Wireless Controls: Includes both a wireless pendant push-button and a wireless foot pedal for complete process control.
• Integrated Safety Systems: Features optional strobe lights and audible alarms to notify bystanders when the machine is in operation.
• Enhanced Visibility: Standard LED lights on each end of the unit improve operator visibility in low-light environments.
• Ergonomic Tooling: Includes an overhead tool mount rail and a stretch wrap holder to wrap cut-to-length jobs on the fly.

Below, we’ll explain how the SWT series meets wholesalers' needs — while providing a fast return on investment by improving efficiency and limiting labor.

Shaftless Overhead Rim Drive Technology

The primary challenge in traditional cable respooling is the physical handling of heavy reels. Most legacy systems rely on under-rollers or jack stands, which require operators to manually lift and position reels before the winding process can even begin.

That workflow is inefficient — it demands significant setup time and specialized lifting equipment just to start a single order. The SWT series utilizes a shaftless overhead rim drive system that brings the machine to the reel (rather than moving the reel to the machine).

An overhead drive system grips the outer rim of the take-up reel to provide torque, eliminating the need for shafts or collars that must be matched to various reel sizes.

Benefits of a shaftless overhead drive include:

• Elimination of heavy lifting associated with loading reels onto under-rollers.
• Faster transitions between different reel sizes without searching for matching hardware.
• Compatibility with multiple reel materials, including wood, plastic, and steel.
• Reduced floor space requirements since reels don't need to be moved to a fixed station.
• Improved stability during high-speed payouts by gripping the reel's strongest point.

In a high-volume environment, the ability to spool directly onto job-site reels or parallel reel payouts without removing them from their stands is a significant advantage. It simplifies the workflow and reduces the risk of back injuries among warehouse staff.

Precision Linear Footage Measurement

Copper and aluminum require a fairly massive capital investment. Inaccurate measurements — over-cutting or under-cutting — impact your profitability immediately.

You need a cable spooler equipped with a high-precision counter that tracks every linear foot of material as it passes through the payout. BHS’s SWT series features a counter that stays in constant contact with the cable, regardless of the payout speed or the material's jacket type. In the SWT-PLUS, the counter communicates with the digital interface, providing precision that aligns with Building Information Modeling (BIM) data provided by contractors.

Precision measurement provides:

• Reduced shrinkage by accounting for every inch of high-value conductor.
• Enhanced customer trust by providing verifiable cut lengths.
• Simplified inventory audits because payout data matches your sales records.
• Minimized waste on the tail end of master reels through better planning.

By ensuring that every cut is exact to the inch, you can maintain tighter inventory control and provide a higher level of service to your clients. Pay attention to the counter's placement; it should be positioned to minimize cable slap and ensure a steady reading throughout the run.

Dynamic Versatility for Diverse Material Handling

Your inventory likely includes everything from delicate fiber optics to heavy-duty armored cable and wire rope. A cable spooler must be versatile enough to handle a range of materials without requiring extensive reconfiguration.

A robust machine should accommodate reel widths and diameters ranging from small plastic spools to large wooden reels. If you have the ability to adjust the width and height of the drive rollers, the machine can remain stable regardless of the load's center of gravity.

The drive system must also provide a smooth start and stop to prevent stretching or damaging sensitive insulation. BHS spoolers are engineered to be versatile, with a stable footprint and adjustable components that allow a single operator to transition between different order types quickly.

Ergonomic Controls and Operator Safety

Industrial spooling equipment should be designed with an ergonomics-first philosophy to prevent repetitive motion injuries and fatigue.

Safety features might include:

• Multiple emergency stop locations for immediate shutdown.
• Foot pedals that allow for hands-free speed modulation.
• Heavy-duty braking systems to prevent reel overspin.
• Ergonomic steering handles to reduce strain during machine positioning.
• Optional integrated personnel barriers.

BHS Spool Winding Trolleys feature retractable personnel barriers, emergency stop buttons in accessible locations, and foot-pedal speed control. The foot pedal is especially important — it allows the operator to keep their hands free to guide the cable onto the take-up reel while controlling the RPM of the drive system.

All-steel construction and a durable powder-coat finish ensure reliability even under the stresses of daily, multi-shift use.

Digital Integration and Programmable Cycles

The most significant advancement in cable spooling machine technology is the integration of Human-Machine Interface (HMI) touchscreens. The SWT-PLUS’s HMI allows operators to pre-program specific cable orders by exact footage. It also includes an Autorun feature, where the machine automatically ramps down its speed as it approaches the target length and comes to a precise stop once the order is fulfilled.

Autorun eliminates the human error factor of an operator trying to manually stop a spinning reel at the correct moment. It’s extremely helpful for complex, multi-conductor parallel pulls where accuracy across several different reels must be identical.

Comparing the SWT Models for Your Workflow

When you're deciding between the two models, consider your daily volume and the complexity of your orders. The SWT-LITE is best suited for facilities with a lower volume of daily cuts or those that primarily handle standard, single-conductor orders. It offers a significant upgrade in safety and speed over traditional methods with a simpler interface.

The SWT-PLUS provides even greater versatility. The ability to program orders into the HMI allows a single operator to manage multiple tasks while the machine handles the precision winding. Both models are compatible with the BHS Parallel Reel Payout, creating a turnkey solution for any wire and cable department.

Key differences between the two models include:

*   SWT-LITE pictured with PRP. PRP is sold seperately. For more information, please see next page.
** SWT-PLUS includes HMI Software with a built-in Cable Counter, Wireless Pendant, and Foot Pedal to control speed.
†   SWT-LITE cannot be retrofitted with digital cable counter in the field.

Either solution provides fast results. You’ll be able to fulfill more orders with your current staff, and the increased accuracy of the SWT greatly reduces the amount of lost wire at the end of the year.

When you implement a system like the SWT-PLUS, you're also providing a safer work environment. Manual respooling is one of the more dangerous tasks in a wire room due to the weight of the reels and the tension involved in the payout. By using a machine that handles the heavy lifting and provides automated stops, you're building a safer, more efficient operation.

Ready to upgrade your cable spooling strategy?

BHS is ready to help you find the right configuration for your specific volume and facility layout. Contact our sales team today at 1.800.BHS.9500 to discuss your needs or submit a request for a custom project.
