Spool Winding Trolley

SKU

SWT

The SWT allows electricians and electrical suppliers to pre-load reels with multiple cables in a fraction of the time, reducing ergonomic hazards and providing a dependable ROI.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Respool reels without removing them from jack stands.

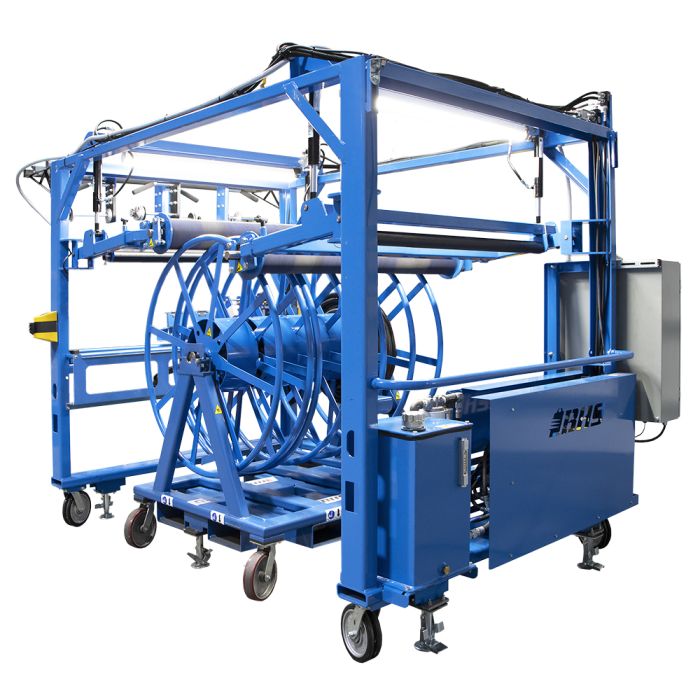

The BHS Spool Winding Trolley (SWT) saves time and labor in cut-to-length wire distribution applications. Position the unit over a BHS Parallel Reel Payout (PRP), Dyna Reel Platform (DRP), or existing jack stands; an overhead rim drive spins take-up reels of virtually any size to fill them efficiently and safely.

Most spooling and reeling machines (such as the standard Reel-O-Matic or a Wemco take-up)* require users to remove reels from jack stands for respooling. In contrast, the SWT’s design enables respooling on a wide variety of reel configurations without removing them from stands. Fill cable, wire, and flexible materials directly onto delivery reels without laborious extra steps.

The SWT pays off cables to one or more compartment reels, counting linear footage that passes through a knurled aluminum encoder wheel. Each revolution pays out 1 foot of cable, ensuring accurate counts, exactly to spec from BIM data; this eliminates waste on every order.

The SWT is also available as an IIoT-enabled model, the SWT-IIoT. Learn more about this fully wired, data-fueled spool winder here.

All models of SWT allow electricians and electrical suppliers to respool reels with multiple conductors in a fraction of the time, reducing ergonomic hazards and providing a dependable ROI. Call our Sales Team at 1-800-BHS-9500 to learn more about the Spool Winding Trolley and other cut-to-length wire distribution innovations from BHS, Inc.

*BHS is not affiliated with Reel-O-Matic, and Reel-O-Matic does not endorse or sponsor BHS or BHS products. BHS is not affiliated with Weber Electric Manufacturing Co. (Wemco), and Wemco does not endorse or sponsor BHS or BHS products.

Features & Benefits

Overhead rim drive rotates take-up reels while an encoder wheel accurately counts linear footage, eliminating waste
Pay out multiple cables to multiple compartment reels at once
Control slide gives operator full control over coiling for the highest possible yield per compartment reel
Adjustable-length overhead rollers accommodate a wide range of reel diameters and configurations
Maximum reel width of 48”
Ideal for use with any PRP or DRP unit
Counter 1:1 ratio – one revolution = 1 linear foot of cable
Counter is angled toward operator for ease of use and is also reversible and resettable
Dual, 6” diameter, urethane-coated rollers create secure contact with various spool and reel types
Hydraulic-actuated roller arms for powered positioning
Direct-coupled hydraulic drive motor for reliable performance
480V ac / 3ph, 3hp power unit. Other voltages available
Low-speed for precise control when beginning and finishing spooling
High-speed to minimize total spooling time
Single phase models come equipped with a 2 button wired control while three phase models feature wireless controls

Specifications

Model	Input Voltage	Roller Motor	Depth	Height	Width	Pendant	Industrial Internet of Things Included
SWT-120-1	120v / 1 Phase	160cc @ 150 RFPM	109.375” / 2778 mm	85.875” / 2181 mm	73.25” / 1861 mm	2-Button Wired	No
SWT-220-1	220v / 1 Phase	160cc @ 150 RFPM	109.375” / 2778 mm	85.875” / 2181 mm	73.25” / 1861 mm	2-Button Wired	No
SWT-208/240-3	208-240v / 3 Phase	50cc @ 575 RFPM 200cc @ 150 RFPM	109.375” / 2778 mm	85.875” / 2181 mm	73.25” / 1861 mm	Wireless	No
SWT-208/240-3-IIOT	208-240v / 3 Phase	50cc @ 575 RFPM 200cc @ 150 RFPM	109.375” / 2778 mm	85.875” / 2181 mm	73.25” / 1861 mm	Wireless	Yes
SWT-480-3	480v / 3 Phase	50cc @ 575 RFPM 200cc @ 150 RFPM	109.375” / 2778 mm	85.875” / 2181 mm	73.25” / 1861 mm	Wireless	No
SWT-480-3-IIOT	480v / 3 Phase	50cc @ 575 RFPM 200cc @ 150 RFPM	109.375” / 2778 mm	85.875” / 2181 mm	73.25” / 1861 mm	Wireless	Yes

Options

Mechanical Cable Counter (SWT-MC): Analog style cable counter requires no power and counts every foot of cable payed out.
Digital Cable Counter (SWT-DC): Digital cable counter works much like the mechanical option, but includes added functionality such as selecting different units of measurement and quick resets.
2 LED Lights (SWT-LED): Shine some light on it by adding one LED light to each end of the SWT.
Additional Rollers (SWT-RLR): Add 2 rollers for simplified, stable pulling from high spools.
Cable Clamp (SWT-LTR): Clamp finished jobs for easy cutting by adding cable clamps to the front of your SWT unit.
Overhead Tool Mount (SWT-OTM): Boost ergonomics and operator safety with an overhead tool mount. Adds one overhead mount rails on each side of unit.
Overhead Tool Mount (SWT-OTM): Boost ergonomics and operator safety with an overhead tool mount. Adds one overhead mount rails on each side of unit.
Gathering Box (SWT-GB): Safely collect paid out product in an adjustable, integrated container.
Shrink Wrap (SWT-SW): Wrap cut to length jobs on the fly with a Strech Wrap Holder, mounted directly above the counter.
