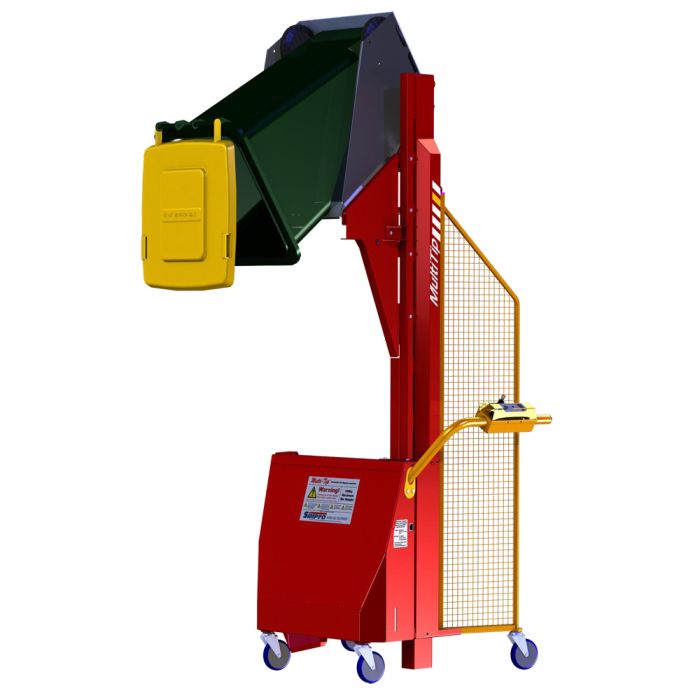

Multi-Tip® Hydraulic Bin Dumper

Effortlessly empty boxes, trash cans, and other common containers with this state-of-the-art bin dumper. The Multi-Tip® Bin Dumper has a capacity of 330 lb (150 kg). Choose a tipping height from 47", 63", or 71" (1200 mm, 1600 mm, or 1800 mm).

Multi-Tip® Bin Dumpers are cost-effective, lightweight, and easy to move. Because of these attributes, they are a great solution for material handling and janitorial staff at schools, hotels, factories, recycling centers, warehouses, and beyond. Empower your staff to effortlessly empty boxes, trash cans, and other common containers with this state-of-the-art bin dumper.

BHS Bin Dumpers offer many safety and ergonomic benefits including:

  • Lift-and-tip motion balances weight transfer for ultimate stability.
  • Controlled bin lowering safely returns cradle to ground level.
  • Durable, powder-coated frame is suitable for any environment.
  • Panels protect workers from accidental contact with the lift track.

The Multi-Tip Bin Dumper suits popular bin sizes from 24 to 96 gallons (90 to 360 Liters). It quickly and safely empties a bin in 15 seconds. With a 330-pound (150 kilogram) capacity, this innovative bin dumper will prevent musculoskeletal injuries and allow staff to handle materials efficiently. The Multi-Tip Bin Dumper is safe for indoor or outdoor use and has 5-inch (125 millimeter) casters (two with brakes) for optimal maneuverability.

Contact our sales team at 1.800.BHS.9500 to learn more about the complete line of Bin Dumpers from BHS. Find out how much more productive your staff can be with an ergonomic, powered bin dumper.

Features & Benefits:

  • Standard cradle suits popular bin sizes from 24 gal to 96 gal (90 L to 360 L)
  • 330 lb (150 kg) safe lifting capacity
  • Standard tipping heights of 47" (1200 mm), 63" (1600 mm), or to 71" (1800 mm) available*
  • Duty Cycle: 25 x 220 lb (90 kg) carts per charge, with continuous charge supported
  • Battery-powered with a sealed battery and a built-in industrial quality ‘float’ charger
  • Powerful and reliable electro-hydraulic system
  • Durable powder coat frame with galvanized components
  • Empties bin in 15 seconds
  • Lockout key and two-hand controls for safety
  • Weight of bin stays within machine footprint throughout dumping cycle to ensure stability
  • Indoor or outdoor use
  • Custom cradles available to suit other bins and drums
  • 5” (125 mm) casters, two with brakes
  • Fork Pockets
* Tip Height is approximate as it varies by bin being dumped.












(1200 mm)

330 lb
(150 kg)

Battery *

(879 mm)

(1237 mm)

(1983 mm)

~ 309 lb
(~ 140 kg)




(1600 mm)

(2383 mm)

~ 353 lb
(~ 160 kg)


(1800 mm)

(2583 mm)

~ 397 lb
(~ 180 kg)

* Battery powerpack: 12v 20Ah sealed gel battery, driving 0.8kw DC motor drawing up to 100 Amps, with 12v DC control voltage.

** Overall Height measurements shown for the bin dumper. Overall height with a bin tipped will vary depending on the bin used and how the bin is tipped.

Note: Unit is also able to dump into compactors and precrushers; suitable for compactors over 47” (1200 mm).

Solar Panel
Battery-powered bin dumpers being used outside can be fitted with a solar panel. Depending on the amount of direct sunlight available, up to two tons (1814 kg) can be emptied per day using solar power alone.
Stainless-Steel Construction
Bin dumpers are available either partially or completely constructed from high-grade 304 stainless steel, suitable for hygiene-critical or corrosive environments such as food production or chemical processing. Corrosion-resistant lifting chains and fittings are also available.
Steel Bucket Cradle
Powder coated steel bucket cradle includes adjustable hoop retainer and adjustable packer blocks. Bolted to the main tote cradle plates, the Bucket Cradle accommodates all tubs that fit within 27” wide (686 mm), 24” deep (609.5 mm), 47” high (1194 mm), including all standard steel drums and BRUTE® Bins.
Custom Controls
Operator controls can be mounted anywhere on the machine or remotely to suit productivity or safety requirements. Dual-hand controls are also available to prevent the operator from engaging in other interactions.
Custom Designs
Contact us with your specific requirements.
Operator Guard
Unbreakable plastic guarding can be fitted adjacent to operator controls for protection when dumping liquids or harmful materials.
Safety Standards
Bin dumpers can be specified to meet international standards and/or CE regulations for an additional cost, depending on the environment, application, and other factors.
