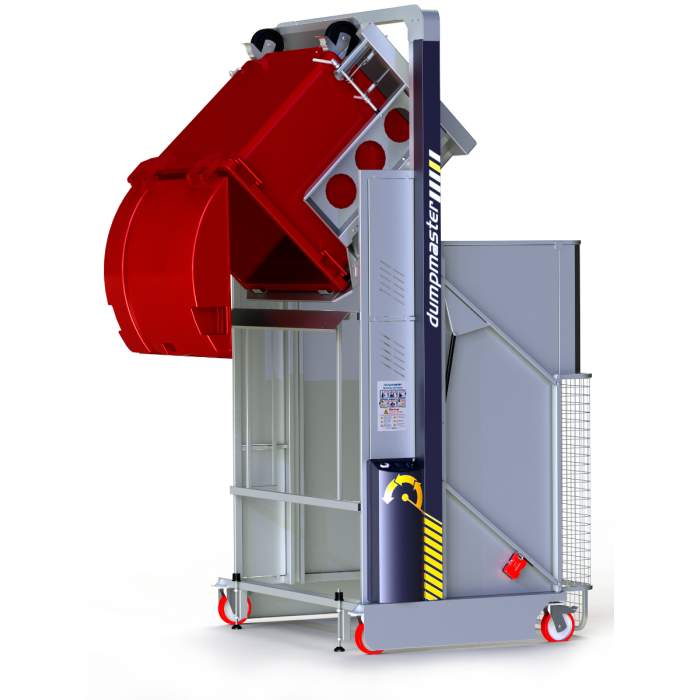

MegaDumper® Hydraulic Bin Dumper

SKU

The ultra-heavy duty MegaDumper^® was designed for emptying 300 and 450 gallon (1135 and 1703 Liter) bins weighing up to 1,320 pounds (600 kilograms), and can be customized to tip almost any container, at heights beyond 23 feet (7 meters).

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

The MegaDumper ^® provides a heavy-duty industrial solution for emptying large bins at weights of up to 1,323 pounds (600 kilograms). The MegaDumper is based on the proven design of the Simpro Dumpmaster^® and is one of the most reliable, safe, and easy-to-use industrial bin dumpers available. The MegaDumper comes standard with a suite of safety features including full-cage guarding.

The MegaDumper uses an ultra-reliable electro-hydraulic mechanism, which means managers don’t have to worry about costly upkeep and repairs. This Bin Dumper has a fully galvanized frame and cradle making it suitable for both indoor and outdoor use. Optional full or partial stainless-steel construction is available for corrosive or hygiene-critical environments.

The MegaDumper comes with an impressive array of features to keep operators safe. Besides the full-cage guarding, this state-of-the-art Bin Dumper also has safe cradle lowering, a door interlock system, a cradle interlock system, and a suite of optional features for enhanced safety.

The best part about the MegaDumper is that it’s fully customizable. A custom MegaDumper can be modified to empty bins of unusual sizes or shapes. Call our sales team at 1.800.BHS.9500 to find out how a MegaDumper can improve safety and efficiency in industrial settings.

Features & Benefits

Designed for emptying 300 gal and 450 gallon (1100 and 1700 Liter) bins but can be customized to tip almost any container
1,320 lb (600 kg) lifting capacity
Standard tip heights from 35.43” to over 20' (900 mm to 6 m)
Duty Cycle: 30 x 500 lb (227 kg) carts per charge; 20 cycles per hour continuous
Power options include 3-phase, battery power pack, or compressed air; battery-powered dumpers have a sealed battery and industrial-quality ‘float’ charger built in
Hydraulic-powered, super heavy-duty
Simple, spill-resistant controls with IP55 ingress protection
Weight of bin stays within machine footprint throughout dumping cycle to ensure stability
Standard 8” (200 mm) casters (two with brakes) for mobility or can be bolted in place via optional bolt-down lug
Cradle requires no clamping, and uses a simple retainment system which needs almost no operator manipulation
Cradles available to suit all common industrial containers; custom cradles available
Guarding includes a swing-up door with solenoid operated door lock, preventing all access to moving parts while machine is in operation
Fully galvanized frame and cradle, suitable for indoor or outdoor use

Specifications

Available Models

MD (Contact BHS for Models and Specifications)

Options

Auto-Cycle Operation: Available for mains-powered bin dumpers to enable operators to leave the machine to complete the cycle unattended.
Bin Hooks: Secure the dumper to a bin or skip.
Compressed-Air Power: For use in hazardous areas.
Custom Controls: Operator controls can be mounted anywhere on the machine or remotely to suit productivity or safety requirements. Dual-hand controls are also available to prevent the operator from engaging in other interactions.
Custom Designs: Contact us with your specific requirements.
Digital Scales: Platform scales fit under the cradle to enable product to be weighed before dumping.
Foot Guard Panels: Foot guards prevent operators’ feet from going under the machine frame.
Front Panel: A guard panel is available for the front for additional protection. Note this face is normally up against the bin being dumped into.
PET-G Operator Guard: Unbreakable plastic guarding can be fitted adjacent to operator controls for protection when dumping liquids or harmful materials.
PET-G Cage: Unbreakable plastic guarding panels are available in place of the standard 1” x 1” (25 mm x 25 mm) wire mesh cage.
Safety Standards: Bin dumpers can be specified to meet international standards and/or CE regulations for an additional cost, depending on environment, application, and other factors.
Solar Panel (Battery-powered units only): Battery-powered bin dumpers being used outside can be fitted with a solar panel. Depending on the amount of direct sunlight available, up to two tons can be emptied per day using solar power alone.
Stainless-Steel Construction: Bin dumpers are available either partially or completely constructed from high-grade 304 stainless-steel, suitable for hygiene-critical or corrosive environments such as food production or chemical processing. Corrosion-resistant lifting chains and fittings are also available.
Dumping Chute: Frame-mounted dumping chute is available for situations where the machine cannot be flush with the bin or hopper. Note the tipping height may need to be increased to accommodate the slope of the chute.
