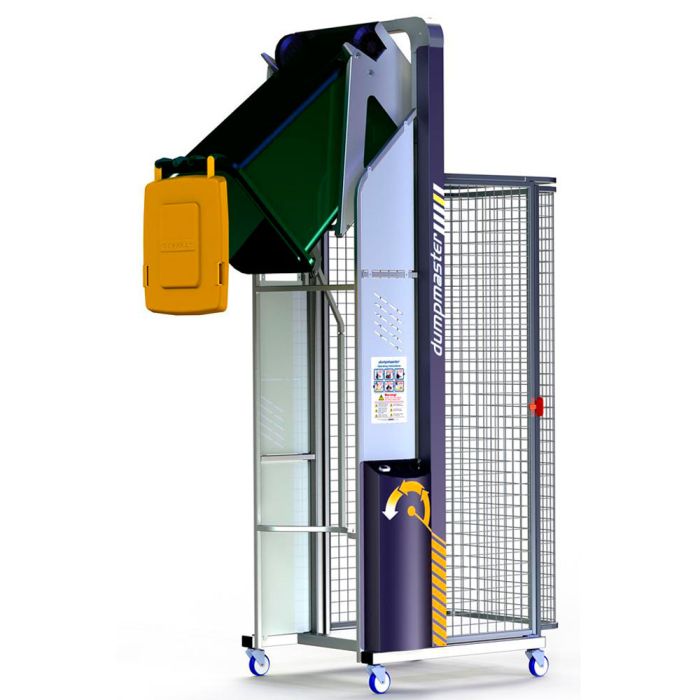

Dumpmaster® Hydraulic Bin Dumper

SKU

The Dumpmaster (DM) tips and empties bins and drums weighing up to 550 lb (250 kg) at tipping heights ranging from 59”–106” (1500–2700 mm).

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Dumpmaster® Bin Dumpers are the ultimate solution for emptying bins and drums weighing up to 550 pounds (250 kilograms) at virtually any height. The dumping action of a Dumpmaster is one of the safest, most efficient, and easiest-to-use systems in the world. The Dumpmaster is the workhorse of the Simpro line and has been widely used in Australasia for the past 25 years. The unique, safe dumping action keeps bin weight within footprint.

Dumpmaster works with popular bin designs, from 32 to 96 gallon (120 to 360 Liter) configurations, without needing adjustments. Custom cradles are available to suit other bin or drum sizes.

This state-of-the-art bin dumper is available with a number of optional features including Battery Power or 3-Phase Power, a Solar Panel, Operator Guard, and more.

Contact the BHS sales team at 1.800.BHS.9500 to find out more or to locate your nearest dealer. Download a comprehensive PDF above for more information about the Dumpmaster Bin Dumper.

Features & Benefits:

Suits popular bin sizes from 32 gal to 96 gal (120 L to 360 L)
550 lb (250 kg) load capacity
Various tipping heights from 59” to 106” (1500 mm to 2700 mm)* but can be built economically to any height
Duty Cycle: 75 x 200 lb (90 kg) carts per charge; 20 cycles per hour continuous
Available with 3-phase or battery power packs; battery-powered dumpers have a sealed battery and an industrial-quality ‘float’ charger built in
Powerful and reliable hydraulic mechanism
Industrial grade galvanized steel frame and cradle with zinc-plated guarding
Weight of bin stays within machine footprint throughout dumping cycle to ensure stability
Custom cradles available to suit other bins and drums
Indoor or outdoor use
Simple, weather-proof controls
4” (100 mm) casters, two with brakes

Important information about the Bucket Cradle option: Powder coated steel bucket cradle includes adjustable hoop retainer and adjustable packer blocks. Bolted to the main tote cradle plates, the Bucket Cradle accommodates all tubs that fit within 27” wide, 24” deep, 47” high, including all standard steel drums and Brute Bins.

* Tip Height is approximate as it varies by bin being dumped.

Specifications

Model Specifications

MODEL

TIP
HEIGHT

CAPACITY

POWER SOURCE*

OVERALL HEIGHT

OVERALL LENGTH

OVERALL WIDTH

WEIGHT

IP RATING

DM1500

59”

(1500 mm)

550 lb

(250 kg)

Battery

3-Phase*

101”

(2560 mm)

47” Door Closed

(1170 mm)

72” Door Open

(1834 mm)

38”

(964 mm)

474 lb

(215 kg)

IP55

DM1800

71”

(1800 mm)

113”

(2860 mm)

496 lb

(225 kg)

DM2100

83”

(2100 mm)

125”

(3160 mm)

518 lb

(235 kg)

DM2400

94”

(2400 mm)

136”

(3448 mm)

540 lb

(245 kg)

DM2700

106”

(2700 mm)

148”

(3753 mm)

562 lb

(255 kg)

Custom

Don’t see what you’re looking for? Contact us to discuss customization.

* Battery Specifications: (2) 12v 21Ah sealed gel batteries, driving 0.8kw DC motor drawing up to 60 Amps, with 24v DC control voltage.
3-Phase Specifications: 480v AC 50/60hz 3-phase mains supply, driving 0.75kw AC motor drawing up to 1.9 Amps, with 24v DC control voltage.

Options

Auto-Cycle Operation

Available for mains-powered bin dumpers to enable operators to leave the machine to complete the cycle unattended.

Bin Hooks

Secure the dumper to a bin.

Compressed-Air Power

For use in hazardous areas.

Custom Controls

Operator controls can be mounted anywhere on the machine or remotely to suit productivity or safety requirements. Dual-hand controls are also available to prevent the operator from engaging in other interactions.

Custom Designs

Digital Scales

Platform scales fit under the cradle to enable product to be weighed before dumping.

Foot Guard Panels

Foot guards prevent operators’ feet from going under the machine frame.

Front Panel

A guard panel is available for the front for additional protection. Note this face is normally up against the bin being dumped into.

Left-Hinged Door

On standard Dumpmaster™ models the door is hinged on the right-hand side, but can be hinged on the left if specified at the time of ordering.

PET-G Operator Guard

Unbreakable plastic guarding can be fitted adjacent to operator controls for protection when dumping liquids or harmful materials.

PET-G Cage

Unbreakable plastic guarding panels are available in place of the standard 1” x 1” (25 mm x 25 mm) wire mesh cage.

Safety Standards

Bin dumpers can be specified to meet international standards and/or CE regulations for an additional cost, depending on environment, application, and other factors.

Solar Panel (Battery-powered units only)

Battery-powered bin dumpers being used outside can be fitted with a solar panel. Depending on the amount of direct sunlight available, up to two tons (1814 kg) can be emptied per day using solar power alone.

Stainless-Steel Construction

Bin dumpers are available either partially or completely constructed from high-grade 304 stainless-steel, suitable for hygiene-critical or corrosive environments such as food production or chemical processing. Corrosion-resistant lifting chains and fittings are also available.

Steel Bucket Cradle

Powder coated steel bucket cradle includes adjustable hoop retainer and adjustable packer blocks. Bolted to the main tote cradle plates, the Bucket Cradle accommodates all tubs that fit within 27” wide (686 mm), 24” deep (610 mm), 47” high (1194 mm), including all standard steel drums and BRUTE® Bins.

Swing-Up Locking Door

Instead of the standard side-hinged door, opt for the swing-up door, supported by gas struts and protected by a solenoid operated lock. The door is locked while a bin is lifted or lowered, and the machine cannot run while the door is open.

Dumping Chute

Frame-mounted dumping chute is available for situations where the machine cannot be flush with the bin or hopper. Note the tipping height may need to be increased to accommodate the slope of the chute.
