Electrical Distribution System

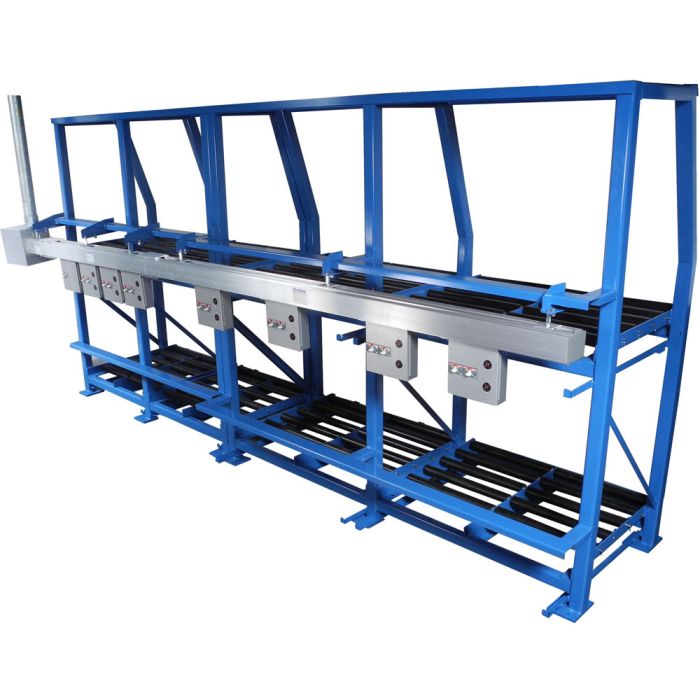

The BHS Electrical Distribution System (EDS) provides flexible power distribution to all 480-volt, 3-phase components in an Operator Aboard Battery Extractor System, including the Battery Extractor, chargers, and Battery Wash Equipment. The EDS is a stand-mounted, high-density system that is customized using track busway that can be tapped at any location with a simple turn-n-lock connection.
The EDS simplifies the process of powering battery handling equipment by reducing the jumble of cords and providing even, dependable output. Instead of tangled cables and costly add-ons, rely on the EDS to safely power all parts of an Operator Aboard Battery Extractor.
The extruded aluminum housing provides a 100-percent ground path, and a dedicated grounding conductor is also available.
Every battery room needs a dedicated Electrical Distribution System—trust BHS to provide yours. Contact our sales team at 1.800.BHS.9500 to learn more about the Electrical Distribution System or other Electrical Distribution options.
Features & Benefits
- Easily accommodates modification or expansion
- Maintenance-free design saves space
- Eliminates interruptions in power
- Track Busway consists of four conductors allowing for a maximum capacity of 800 A / 600 V ac or dc
- Circuit Breaker Units tap off power from Track Busway with unique turn-n-lock "compression fit" connection
- Standard short circuit capacity for 50 kA
- Circuit breaker units available with standard NEMA L16-20 or L16-30 receptacles
- Extruded aluminum housing provides 100% grounding path, dedicated conductor for ground is also available
