Triple Stack Battery Extractors
A High-Capacity Forklift Battery Changer with IIoT Integration

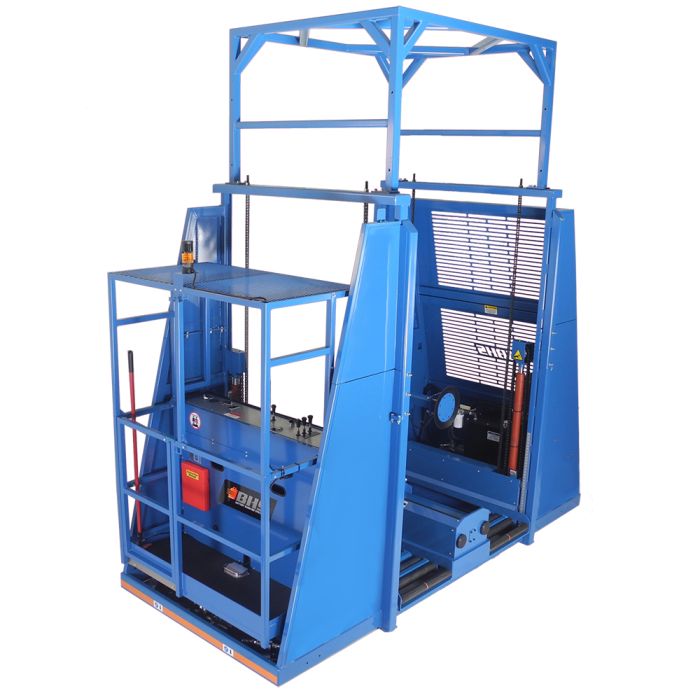

BHS Triple Stack Battery Extractors (BE-TS) travel safely up to three tiers high, providing quick and reliable transportation for forklift batteries of virtually any size. The BE-TS is ideal for expanding battery collections, and provides particular benefit to forklift fleets that use between 150 and 299 batteries.
A full range of sensors within the unit provides real-time data on usage and system health, accessible through the BHS IIoT Portal. Admins can acces the Portal from anywhere with internet connectivity through a secure login. Portal users can authorize operator accounts, view data on use sessions, and check notifications regarding key system perameters. The IIoT system also emails these notifications to users of the admin’s choice.
High-Capacity Battery Handling with a Smaller Footprint
The BE-TS features a heavy-duty steel frame, dual-battery beds with powered rollers, and a unique extractor arm for added efficiency. Twin-chromed and hardened shafts guide extractor arm travel, with four-point bearing contact contributing to the extraordinary stability of the extraction system. Vacuum grips treat battery cases gently and attach firmly to batteries in under a second, and optional magnetic extraction provides efficient change-outs for batteries with slim casings.
Two independent drive wheels power floor travel. This synchronized drive system provides smooth travel in any conditions. The IIoT system alerts authorized users if it detects unequal chain alignment, preventing damage to the unit and hazards to operators.
With a wide range of stock safety features, both mechanical and digital, and even more available as optional additions, the BE-TS keeps staff and infrastructure low-risk and productive. Call our sales team at 1.800.BHS.9500 to learn more.
Features & Benefits
- Heavy-duty construction for added reliability
- Low-maintenance design plus condition-based and predictive maintenance capabilities with email notifications reduce downtime to the absolute minimum
- Digital support systems include the BHS IIoT Portal and touchscreen operator interface
- Through the BHS IIoT Portal, admins can authorize Portal users and asset Operators, adjust email notifications, turn on/off a 24-hour Daily Operator Checklist requirement, view historical usage data, access logged system alerts, and more from virtually any computer or mobile device
- Operator login prevents unauthorized access and keeps records of use sessions
- Proximity sensors on the unit dash prevent unauthorized changes to control systems
- No exposed components for added safety
- Durable powder coat finish resists both acid and scratches
- Manual control of hydraulics for easy operation
- Vacuum extraction reduces wear and tear on batteries
- Vacuum extractor arm adjustable for various reach requirements
- Non-proprietary hydraulic and electrical components lower replacement part costs
- Redesigned hydraulic system for increased flow capacities and consistent function speeds
- Quiet-running dual floor drive system provides positive traction on wet or dry surfaces
- BHS exclusive Non-Inter-Flow (NIF) hydraulic manifold system stabilizes the lift cylinders to ensure a level roller bed during load transfers
- Four lift cylinders, in combination with four-point equalization, assure smooth and level vertical movement of the roller bed when empty or loaded
- Five hydraulic-powered rollers per compartment provide a brake for safe, easy battery transfer
- Induction-type proximity switch disables floor drive to protect equipment when the extractor arm is outside the envelope of the compartment
BE-24-2-TS |
BE-36-2-TS |
BE-42-2-TS |
|
Travel Speed |
0 to 240 ft/min / 0 to 1.22 m/s |
0 to 240 ft/min / 0 to 1.22 m/s |
0 to 240 ft/min / 0 to 1.22 m/s |
Raise - Lower Speed |
0 to 26 ft/min / 0 to 0.13 m/s |
0 to 26 ft/min / 0 to 0.13 m/s |
0 to 26 ft/min / 0 to 0.13 m/s |
Powered Roller Speed |
0 to 37 ft/min / 0 to 0.19 m/s |
0 to 37 ft/min / 0 to 0.19 m/s |
0 to 37 ft/min / 0 to 0.19 m/s |
Arm Traverse Speed |
0 to 20 ft/min / 0 to 0.10 m/s |
0 to 20 ft/min / 0 to 0.10 m/s |
0 to 20 ft/min / 0 to 0.10 m/s |
Arm Rotation Time |
6 s to 8 s |
6 s to 8 s |
6 s to 8 s |
Draw Bar Pull / Vacuum (12” / 305 mm Round Cup) |
1,000 lb / 454 kg |
1,000 lb / 454 kg |
1,000 lb / 454 kg |
Draw Bar Pull Magnet* |
800 lb to 1,200 lb / 363 to 544 kg |
800 lb to 1,200 lb / 363 to 544 kg |
800 lb to 1,200 lb / 363 to 544 kg |
Vacuum Attach Time |
< 1 s |
< 1 s |
< 1 s |
Vacuum Release Time |
< 1 s |
< 1 s |
< 1 s |
Input Voltage |
480 V / 3 ph / 60Hz |
480 V / 3 ph / 60Hz |
480 V / 3 ph / 60Hz |
AC Current Draw |
35 A |
35 A |
35 A |
AC Current Draw w/ Electric Drive Option |
42 A |
42 A |
42 A |
Control Circuit Voltage |
120 V ac |
120 V ac |
120 V ac |
Hydraulic Power Unit |
20 hp / 14.9 kW |
20 hp / 14.9 kW |
20 hp / 14.9 kW |
Hydraulic Power Unit w/ Electric Drive Option |
25 hp / 18.7 kW |
25 hp / 18.7 kW |
25 hp / 18.7 kW |
Hydraulic Pump |
22 gal/min / 83 L/min |
22 gal/min / 83 L/min |
22 gal/min / 83 L/min |
Power Unit |
Hydraulic, Variable Displacement |
Hydraulic, Variable Displacement |
Hydraulic, Variable Displacement |
Operating Pressure |
1,500 psi / 103 bar |
1,500 psi / 103 bar |
1,500 psi / 103 bar |
Vacuum Pump |
1/3 hp / 0.25 kW |
1/3 hp / 0.25 kW |
1/3 hp / 0.25 kW |
Vacuum |
21” Hg / 711 mbar |
21” Hg / 711 mbar |
21” Hg / 711 mbar |
Full Load Capacity |
10,000 lb / 4535 kg |
10,000 lb / 4535 kg |
10,000 lb / 4535 kg |
Weight (Empty) |
8,000 lb / 3629 kg |
8,300 lb / 3765 kg |
8,600 lb / 3901 kg |
Total Compartment Rollers / Powered |
11/5 |
11/5 |
11/5 |
Guide Track |
3” x 2.5” Angle 76 mm x 64 mm |
3” x 2.5” Angle 76 mm x 64 mm |
3” x 2.5” Angle 76 mm x 64 mm |
Overall Dimensions (L x W x H) |
156.5” x 72” x 158.188” 3975 mm x 1829 mm x 4018 mm |
180.5” x 72” x 158.188” 4585 mm x 1829 mm x 4018 mm |
192.5” x 72” x 160.688” 4890 mm x 1829 mm x 4081 mm |
Vacuum Arm Reach |
4.5” to 14” / 114 mm to 356 mm |
4.5” to 14” / 114 mm to 356 mm |
4.5” to 14” / 114 mm to 356 mm |
Vacuum Arm Reach (Hydraulic Extension) |
9” to 23” / 229 mm to 584 mm |
9” to 23” / 229 mm to 584 mm |
9” to 23” / 229 mm to 584 mm |
Magnet Arm Reach (Hydraulic Extension) Truck Side |
14” to 22” / 355 mm to 559 mm |
14” to 22” / 355 mm to 559 mm |
14” to 22” / 355 mm to 559 mm |
Wheel Base |
98” / 2489 mm |
122” / 3099 mm |
134” / 3404 mm |
Drive Wheel Centerline |
51” / 1295 mm |
51” / 1295 mm |
51” / 1295 mm |
Battery Compartment Width |
24” / 610 mm |
36” / 915 mm |
42” / 1067 mm |
Maximum Battery Dimensions |
48” x 23” x 34” 1219 mm x 584 mm x 864 mm |
48” x 35” x 34” 1219 mm x 889 mm x 864 mm |
48” x 41” x 34” 1219 mm x 1041 mm x 864 mm |
Minimum Battery Width (with vacuum / magnet) |
12” / 305 mm 6” / 152 mm |
12” / 305 mm 6” / 152 mm |
12” / 305 mm 6” / 152 mm |
Minimum Battery Height |
17.75” / 451 mm |
17.75” / 451 mm |
17.75” / 451 mm |
Ground Clearance |
0.63” / 16 mm |
0.63” / 16 mm |
0.63” / 16 mm |
Roller Height |
6.5” Min / 96” Max 165 mm Min / 2438 mm Max |
6.5” Min / 96” Max 165 mm Min / 2438 mm Max |
6.5” Min / 96” Max 165 mm Min / 2438 mm Max |
Note: Specifications may vary ± 5% because of temperature, floor considerations, and operator efficiency. Values represented under normal operating conditions.
* Varies with battery case thickness and condition.
