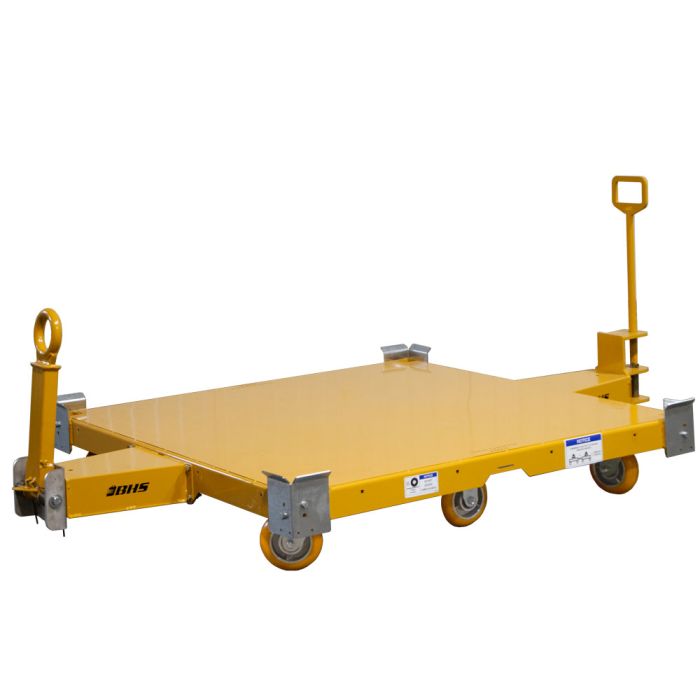

Tugger Carts - Center Steer

Only %1 left
SKU
TT-CS

Tugger Carts (TT) from BHS offer bulk transportation of materials across floors and ramps, and hitch to one another to create high-volume material-handling trains. They are a crucial component of a pick-to-cart strategy, in which order pickers fill trailers to capacity, and tuggers travel in waves to collect items in batches. These industrial carts are ideal for order-picking applications, as a supplement or even a replacement for lift trucks.

Center Steer Tugger Carts (TT-CS) achieve exceptional maneuverability with a fifth caster in the center of the frame. This wheel is slightly larger than the others, allowing the entire unit to pivot in place. This makes the TT-CS ideal for pulling loads by hand, or in narrow aisles with tight turns.

The TT-CS can also function as part of a logistics train, vastly improving efficiency in order picking applications and raw-material delivery for manufacturers. Like all Tugger Carts from BHS, the TT-CS features heavy-duty steel construction and a powder coating that’s formulated to resist common sources of equipment damage in industrial applications.

Call the BHS sales team at 1.800.BHS.9500 to learn more about Center Steer Tugger Carts and other material handling solutions for your industry.

Features & Benefits

  • Reduces order picking time by creating a pick train
  • Safe, efficient material handling for manufacturing and warehousing applications
  • Large central wheel provides unmatched maneuverability
  • 2,500 lb capacity models available
  • Heavy-duty 6″ x 2″ or 8” x 2” polyurethane-on-steel casters depending on capacity
  • Phenolic or solid casters available on request
  • Heat-resistant powder coatings available on request
  • Standard units include spring-loaded auto latches
  • Custom hitches available on request
  • Travels in line behind tuggers for easier navigation
  • Heavy-duty steel construction with high load limits
  • Configurable to support any materials
  • Compatible with all types of electric tuggers

MODEL

WIDTH

LENGTH

DECK HEIGHT*

CAPACITY

WEIGHT

TT-CS-2666

26” / 660 mm

66” / 1676 mm

6.75” / 171 mm

2,500 lb / 1134 kg

225 lb / 102 kg

TT-CS-3660

36” / 914 mm

60” / 1524 mm

6.75” / 171 mm

2,500 lb / 1134 kg

250 lb / 113 kg

TT-CS-3672

36” / 914 mm

72” / 1829 mm

6.75” / 171 mm

2,500 lb / 1134 kg

275 lb / 125 kg

TT-CS-5050

50” / 1270 mm

50” / 1270 mm

6.75” / 171 mm

2,500 lb / 1134 kg

475 lb / 215 kg

TT-CS-4896

48” / 1219 mm

96” / 2438 mm

6.75” / 171 mm

2,500 lb / 1134 kg

550 lb / 249 kg


*Varies based on casters selected

Fork Pockets (TT-FP)
Fork pockets allow relocating the Tugger Cart by lift truck to and from a worksite.
Pintle Hook (TT-PH)
Exchange spring-loaded auto latches for rigid pincer-style hitches; ideal for rough terrain.
Large Poly Casters (TT-C)
Replace 6” x 2” casters with 8” x 2” polyurethane-on-steel casters.
