Roller Wash Stations

Only %1 left

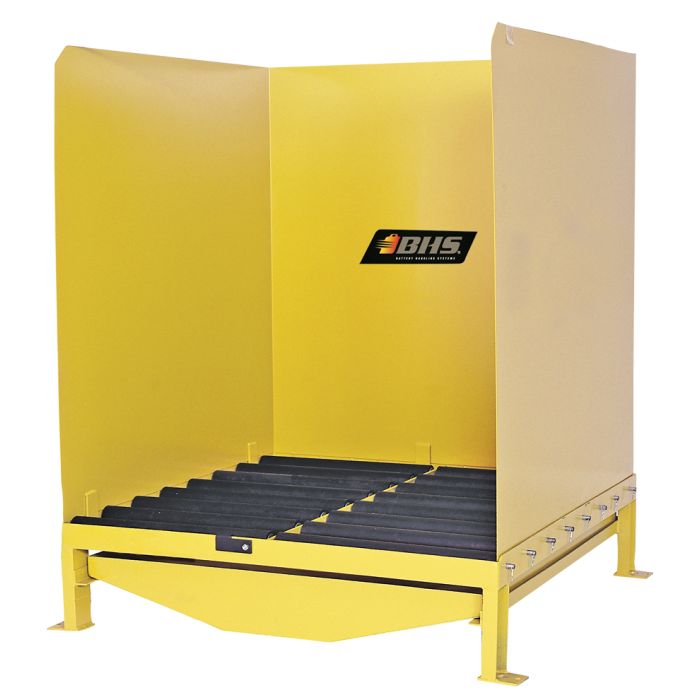

Forklift battery wash station equipped with poly sleeved rollers contains battery wash water and over-spray.

The BHS Roller Wash Station (RWS) provides a convenient and contained location to wash electrolyte from forklift batteries. Leaks, spills, and boil-overs can leave corrosive residue on cases or terminals as batteries are used, watered, and charged. Regularly cleaning this electrolyte from the battery will increase its life and performance.

The Roller Wash Station has spark-proof, poly-sleeved rollers to easily load batteries onto the wash deck. A removable drain tray collects waste water and can connect to a BHS Recirculation/Neutralization System (RNS).

Three 48-inch walls prevent overspray from reaching the warehouse floor while still permitting staff easy access to the battery during washing. The body of the wash station is powder coated to resist corrosion and the poly-sleeved rollers are also anti-corrosive. Optional fork pockets can be added to the station to add mobility.

BHS Roller Wash Stations help warehouse staff safely maintain forklift batteries for added life and better performance. Contact our sales team at 1.800.BHS.9500 to find out more about Roller Wash Stations or other Battery Wash Equipment from BHS.

Features & Benefits

  • 11.75" (298 mm) roller height standard
  • 48" (1219 mm) side panels
  • 4,000 lb (1814 kg) load capacity
  • Spark-proof, poly-sleeved rollers reduce corrosive build-up and extend product life
  • Corrosion resistant sleeved rollers extend the life of the equipment
  • Drain tray is removable for easy cleaning and has 1” (25 mm) NPT coupling
  • Designed as stand-alone or for use with Recirculation / Neutralization System (RNS)



Frame Construction

Mild Steel

Stainless Steel

Drain Port Size

1” NPT / 25 mm

Drain Tray Capacity

23 gal / 87 L (Approximate)

Number of Rollers Inside Wash Station


Maximum Weight Capacity

4,000 lb / 1814 kg

Overall Depth

48” / 1219 mm

Overall Width

48” / 1219 mm

Overall Height

60” / 1524 mm (without option RWS-FP)

Height from Floor to Top of Roller Bed / Wash Deck

11.75” / 298 mm (without option RWS-FP)

Shipping Weight

600 lb / 272 kg

14" Roller Height (RWS-3-14 / RWS-3-SS-14)
14" (356 mm) roller height to allow drain tray to be removed when used in an Operator Aboard Battery Extractor System
Fork Pocket (RWS-FP)*
Welded fork pockets for added mobility Note: 17.5" (445 mm) roller height
Stainless Steel Fork Pocket (RWS-FP-SS)
Welded fork pockets for added mobility (available on RWS-3-SS model only) Note: 17.5" (445 mm) roller height
* Not to be used while battery is on RWS
