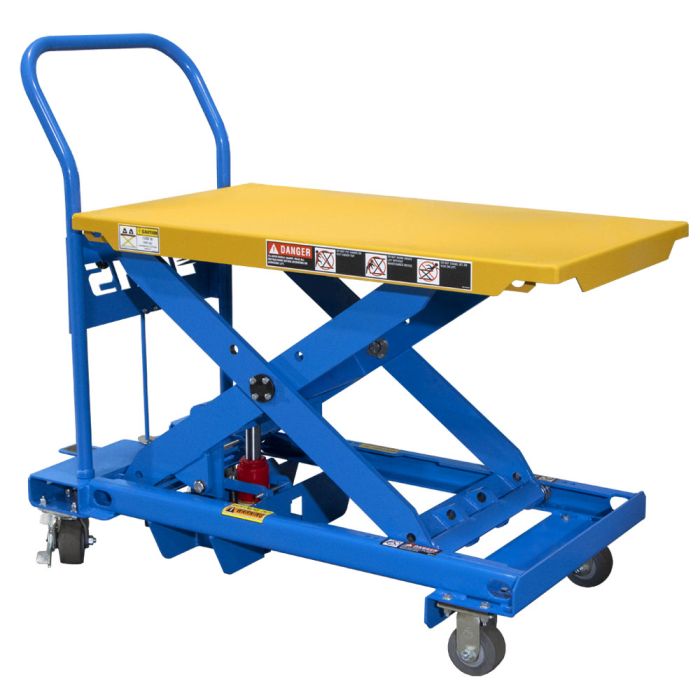

Manual Mobile Lift Table
Only %1 left
SKU
MMLT
Lift Tables reduce risk of injury, improve efficiency, and help to meet workplace safety standards. The Manual Mobile Lift Table is a versatile work-positioning solution that meets all these goals while traveling easily throughout facilities.
Manual Lift Tables speed up work, reduce strain and injuries, and help warehouses comply with federal safety regulations. The ergonomic positioning of work is a quick way to increase productivity, and the BHS Manual Mobile Lift Table (MMLT) makes that task simple.
The manual lift table has two rigid and two swivel-with-brake casters for smooth transportation. An angled handle with adjustable grip makes travelling with a load easy and comfortable. Users raise and lower the MMLT with a centralized toggle foot pedal.
The MMLT offers a variety of options to get even more productivity gains from your lift table. Choose from two alternate tabletop attachments — Ball Transfer or Roller Conveyor — or talk to our Sales Team to discuss custom tabletop designs.
Having the right tabletop for the job helps workers complete tasks with ease. An optional Accordion Skirt Guard encloses the underside of the lift table and protects the lift mechanism from dirt and foreign objects.
For more information about the BHS Manual Mobile Lift Table, call 1.800.BHS.9500. Our sales team can answer questions about customizing your lift table or direct you to a local dealer.
Features & Benefits
- Durable powder coat finish with yellow tabletop to improve visibility and safety
- Heavy-duty, formed steel construction for added reliability
- Two swivel with brake and two rigid 4” (102 mm) corrosion-resistant urethane casters
- Angled handle with adjustable grip for ease of movement and comfort while traveling with load
- Maintenance retainers included for locking scissors
- Durable, long life, steel cam rollers
- Hydraulic components contained within the lift table for maximum safety, floor space, and convenience
- Scissor legs designed for maximum lift height and collapsibility
- Integral foot pedal for ambidextrous operation
- Meets ANSI Standard MH29.1:2012 for Industrial Scissor Lifts and complies with LMPS
|
Model |
Vertical Travel |
Capacity |
Table Height |
Table Dimensions |
Overall Dimensions |
Strokes to Max Height |
||||
|
Min |
Max |
Width |
Length |
Width |
Length |
Height |
||||
|
MMLT-350 |
20” 508 mm |
350 lb 159 kg |
12.25” 312 mm |
32.75” 832 mm |
24” 610 mm |
36” 914 mm |
25.375” 645 mm |
40.75” 1035 mm |
38” 965 mm |
80 |
|
MMLT-750 |
20” 508 mm |
750 lb 340 kg |
12.25” 312 mm |
32.75” 832 mm |
24” 610 mm |
36” 914 mm |
25.375” 645 mm |
40.75” 1035 mm |
38” 965 mm |
80 |
|
MMLT-1200 |
20” 508 mm |
1,200 lb 544 kg |
12.25” 312 mm |
32.75” 832 mm |
24” 610 mm |
42” 1067 mm |
24” 610 mm |
52.5” 1334 mm |
44” 1118 mm |
80 |
|
MMLTD-750 |
59.125” |
750 lb 340 kg |
16.875” 429 mm |
76” |
24” 610 mm |
36” 914 mm |
25.375” 645 mm |
40.75” 1035 mm |
58” |
*Consult Factory |
|
MMLTD-1200 |
59.125” |
1,200 lb 544 kg |
16.875” 429 mm |
76” |
24” 610 mm |
42” 1067 mm |
25.375” 645 mm |
46.75” 1187 mm |
58” |
*Consult Factory |
Video Resources
Manual Mobile Lift Table
