Order Picking Platform - Knock Down Flat

The Order Picking Platform–Knock Down Flat (OPP-4840-KDF) attaches to an order picker truck for upper-shelf picking to pallets or inventory replenishment directly from pallet loads.

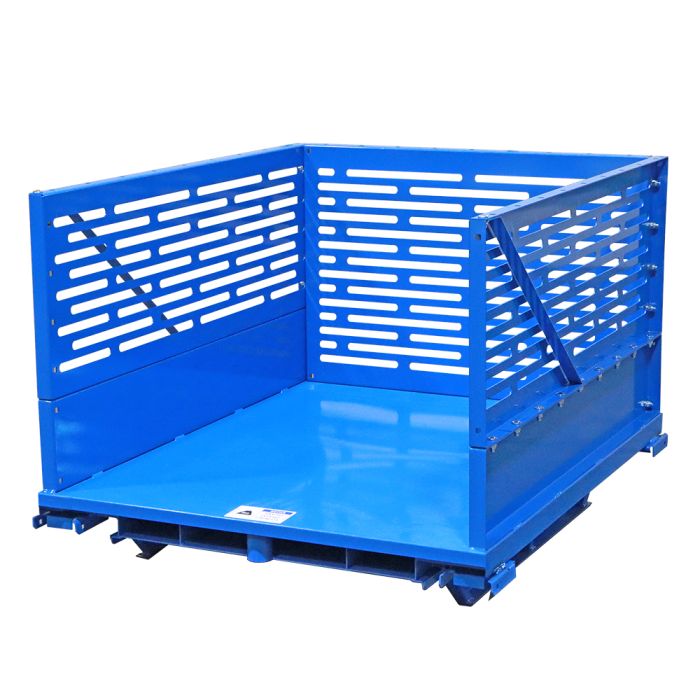

Improve safety and efficiency when picking orders at height with Order Picking Platforms – Knock Down Flat (OPP-KDF) from BHS, Inc. These steel, three-walled platforms affix to order picker trucks, giving the truck operator space to fill (or empty) pallets while keeping all items safely enclosed. Optional casters and push handle allow use with or without a forklift, and bifolding galvanized covers are available as a work surface or storage for scanners and lightweight tools.

Expanded steel enclosure walls stand 24” high, and optional additional panels double that height. These components collapse to save on shipping costs and take up less space during storage. Between uses, Order Picking Platforms are stackable up to two levels*, or up to six when knocked down flat**. This space-saving design makes Order Picking Platforms an ideal solution for boosting capacity during peak season.

Custom designs are available on request. To learn more about Order Picking Platforms, or to find a BHS dealer near you, call the BHS sales team at 1.800.BHS.9500.

* A maximum of one unit can be safely attached to an order picker truck. Do not attempt to use stacked units simultaneously on lift truck.

**Removal of bolts required for disassembly

Features & Benefits:

  • Provides safe, high-capacity storage for pallet-loads during picking and putaway
  • Steel, powder-coated construction for increased durability
  • Integrated fork pockets provide connection to order picker trucks
  • Ships knocked down flat to save on freight costs
  • Stack two (2) assembled units during storage, or collapse to nest six (6) high
  • Carrying capacity of 1,000 pounds (454 kg)
  • Sized to store standard pallets and full pallet loads
  • Standard slotted steel walls stand 24” (610 mm) high
  • Optional additional panels increase enclosure height to 48” (1219 mm)
  • Optional casters and push handle available for manual use
  • Optional bifolding removable cover provides a work surface with adjustable dimensions





Compartment (W×D×H)

Fork Pocket Dimensions




1016 mm


1219 mm

32 9/16”

827 mm

36 3/4” × 46 3/8” × 24 7/8”

933 mm × 1178 mm × 632 mm

Order Pickers: 26 13/16”

Pallet Jack: 15 1/4”

260 lb

118 kg

Casters (OPP-4840-KDF CASTER)
(4) Casters for manual mobility
Removable Cover (OPP-4840-KDF-CVR)
Removable galvanized cover provides a work surface with adjustable dimensions. Hinged cover bifolds to make a 4-sided tray or collapse for storage.
Height Extension (OPP-4840-KDF EXTENDED WALLS)
(3) Additional side panels bolt on to double the compartment height to 49 3/4” (1264 mm)
Push Handle (OPP-4840-KDF-HDL)
Push Handle for ergonomic maneuverability
