Gas Cylinder Cabinet

Only %1 left
SKU
GCC
Securely store industrial gas cylinders, like oxygen or acetylene, in a heavy-duty cage to protect contents and prevent tampering.

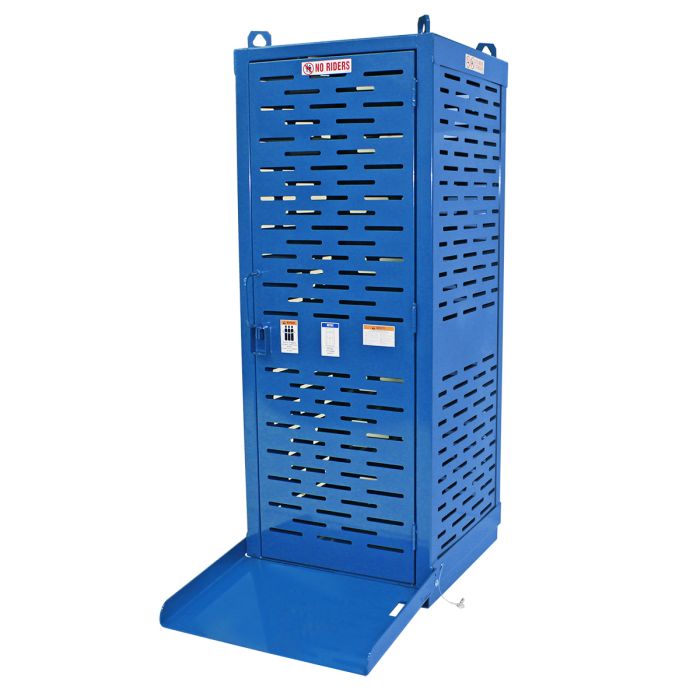

The Gas Cylinder Cabinet (GCC) is a heavy-duty formed and welded cage used to securely store industrial cylinders, like oxygen or acetylene. The walls and door are comprised of laser-slotted metal to provide security, visibility of contents, as well as natural ventilation. In addition to these features, the firewall model includes OSHA-compliant firewall separating compartments. The GCC can be transported by forklift.* The door hinges are welded for strength and the door can be locked to prevent unauthorized access.

Features & Benefits

  • Hinged ramp on front of unit for loading/unloading flips up and pin-secures when not in use
  • Welded-in strapping system allows for easy adjustments when securing cylinders
  • Heavy-duty welded steel cage used for storage of industrial cylinders
  • Two-way fork pockets and lifting eyes aid in relocation of unit*
  • GCC-20-FW stores Ten 9” diameter high-pressure or Six 12” diameter fuel-gas cylinders per side
  • Integral handle and locking system
  • Drain hole on inside platform
  • Custom builds available upon request

* Do not attempt to transport unit while loaded with gas cylinder(s)

Model

Description

Overall Width

Overall Depth

Overall Height

Weight

GCC-9

Store (9) 9” diameter cylinders

32” / 813 mm

32” / 813 mm

84” / 2134 mm

385 lb / 175 kg

GCC-12

Store (12) 9” diameter cylinders

33” / 838 mm

42” / 1067 mm

84” / 2134 mm

460 lb / 209 kg

GCC-20

Store (20) 9” diameter cylinders

50” / 1270 mm

50” / 1270 mm

84” / 2134 mm

685 lb / 311 kg

GCC-20-FW

Store (10) 9” diameter high-pressure or (6) 12” diameter
fuel-gas cylinders per side with OSHA-compliant
firewall separating compartments

50” / 1270 mm

50” / 1270 mm

84” / 2134 mm

925 lb / 420 kg

California Residents: WARNING: This product contains chemicals known to the State of California to cause cancer and/or reproductive harm, and birth defects or other reproductive harm. Learn more here.
