Lead Screw Field Retro Kit
Installation Instructions can be downloaded here
Installation Instructions can be downloaded here

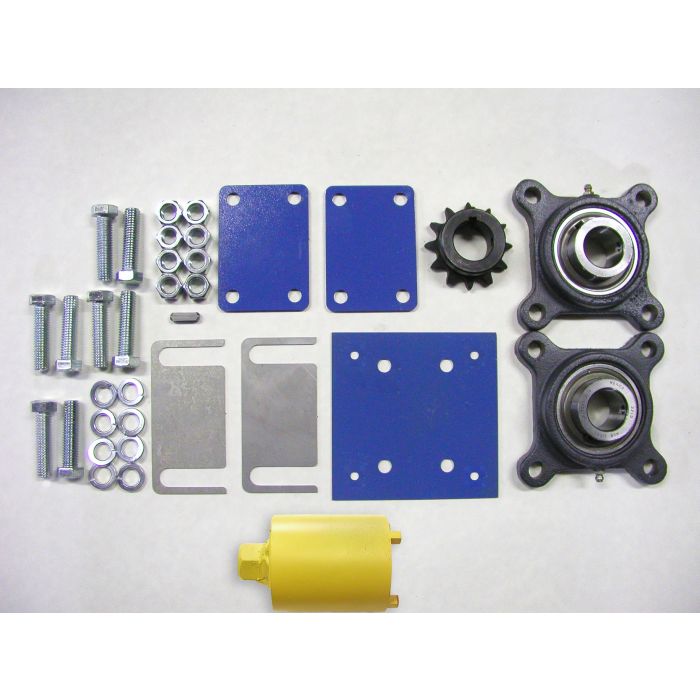

| QTY | PART# | DESCRIPTION |
|---|---|---|
| 1 | 43024001 | LEAD SCREW |
| 1 | PT0119 | SPROCKET-50B15 X 1 3/16" |
| 1 | 43097004 | KEY-1/4" X 7/8" |
| 2 | PT0406 | BEARING-FLANGE-4 BOLT-1 3/16" |
| 8 | HW0504 | BOLT-HHCS-1/2-13 X 2" |
| 8 | HW0007 | NUT-HEX-1/2-13 |
| 8 | HW0110 | WASHER-LOCK-1/2" |
| 2 | 43057019 | BEARING COVER |
| 2 | 43057022 | SHIM-18 GA. |
| 2 | 43057031 | SHIM-12 GA. (NOT SHOWN) |
| 2 | 43057032 | SHIM-14 GA. (NOT SHOWN) |
| 1 | 43050001 | SPANNER WRENCH |
| 1 | 43057018 | TEMPLATE-BEARING MOUNTING |
| 1 | 80252011-i | INSTALLATION INSTRUCTIONS |
