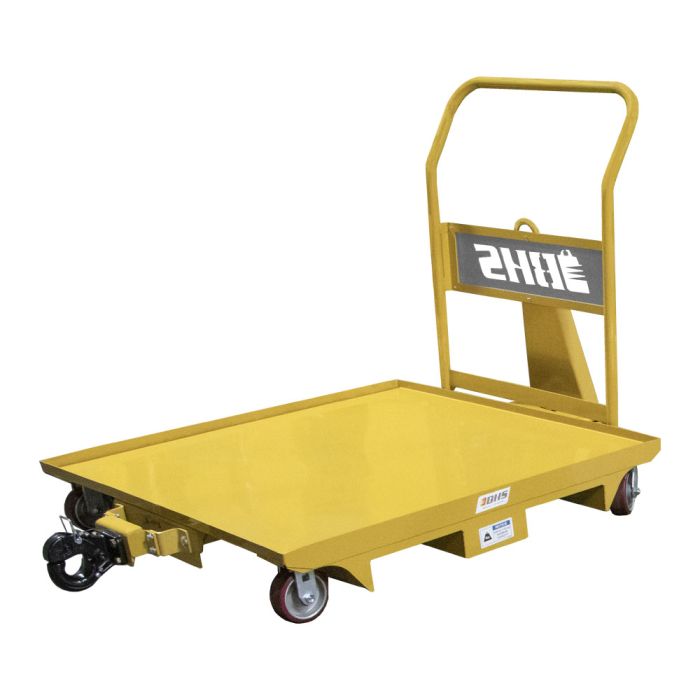

Custom Dual Steer Warehouse Trailer with Push Handle
Only %1 left
SKU
TT-PC
These customized warehouse trailers are designed to transport product individually or in a train with a tugger truck. Equipped with a push handle and folding tow bar, the tugger cart doubles as a manually pushed cart for even more versatility.
These customized Warehouse Trailers from BHS combine all the features of standard dual-steer tugger carts and adds a push handle turning the tugger cart into a manual push cart. Multiple trailers can be hitched together to create a logistics train that when pulled by a tugger truck, allows a single operator to deliver a large quantity of product throughout an entire facility. A perimeter lip around the cart deck ensures product stays contained on the cart during transit. Fork pockets cut into the side of the cart allow the cart to be transported with a lift truck or pallet jack.
With a folding tow bar and pintle hitch, these warehouse trailers will attach to most standard tugger truck hitches and quickly uncouple to drop off carts at designated workstations where the product is needed. The sturdy push handle allows the cart to be manually maneuvered when not connected to a tugger or train. Empty carts can be connected back to the train and returned to be reloaded with product for re-distribution.
Browse BHS' full line of Tugger Carts or call the BHS sales team at 1.800.BHS.9500 to discuss your applicaiton requirements.
Features & Benefits
- 1” (25 mm) tall perimeter lip to secure cargo
- 24” (610 mm) long fold-up tow bar
- Heavy duty pintle hitch keeps carts securely coupled
- Push handle on tow bar end allows carts to be easily pushed by hand
- Two swivel with brakes and two rigid 5" x 2" (127 mm x 51 mm) poly casters
- Heavy-duty steel construction for added reliability
- Durable powder-coat finish resists rust and scratches
- Can be customized for any application
*Overall length is with tow bar folded down in the tow position.
|
Model |
26301197 |
26301196 |
26301195 |
26301198 |
|
Platform Width |
30” / 762 mm |
48” / 1219 mm |
48” / 1219 mm |
48” / 1219 mm |
|
Platform Length |
32” / 813 mm |
45” / 1143 mm |
65” / 1651 mm |
70” / 1778 mm |
|
Platform Height |
6.75” / 171 mm |
6.75” / 171 mm |
6.75” / 171 mm |
6.75” / 171 mm |
|
Overall Width |
30” / 762 mm |
48” / 1219 mm |
48” / 1219 mm |
48” / 1219 mm |
|
Overall Length (Tow Bar Raised) |
50.5” / 1283 mm |
63.5” / 1613 mm |
83.5” / 2121 mm |
88.5” / 2248” mm |
|
Overall Length (Tow Bar Down) |
73.5” / 1867 mm |
86.5” / 2197 mm |
106.5” / 2705 mm |
111.5” / 2832 mm |
|
Overall Height |
42.625” / 1083 mm |
42.625” / 1083 mm |
42.625” / 1083 mm |
42.625” / 1083 mm |
|
Fork Pocket Openings (W x H x Inside Spread) |
5.25” (133 mm) x 2.5” (64 mm) x 4.5” (114 mm) |
10.5” (267 mm) x 3” (76 mm) x 7.5” (191 mm) |
10.5” (267 mm) x 3” (76 mm) x 7.5” (191 mm) |
10.5” (267 mm) x 3” (76 mm) x 7.5” (191 mm) |
|
Capacity |
2500 lb / 1134 kg |
2500 lb / 1134 kg |
2500 lb / 1134 kg |
2500 lb / 1134 kg |
|
Weight |
179 lb / 82 kg |
261 lb / 118 kg |
302 lb / 137 kg |
311 lb / 141 kg |
